XJM800

XJM800/BD bright and dark field upright metallurgical microscope with the infinity optical system is suitable to observe opaque object

1. Introduction

XJM800/BD bright and dark field upright metallurgical microscope with the infinity optical system is suitable to observe opaque object. It can achieve polarization, dark field and DIC image. Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space.

With long working distance plan achromatic objectives (no cover glass), can get sharp pictures and wide field, With large move range mechanical stages, moving range:8"X8"(204mmX204mm), minimum division of fine focusing is 0.8μm. light with 100% can be to the top port.

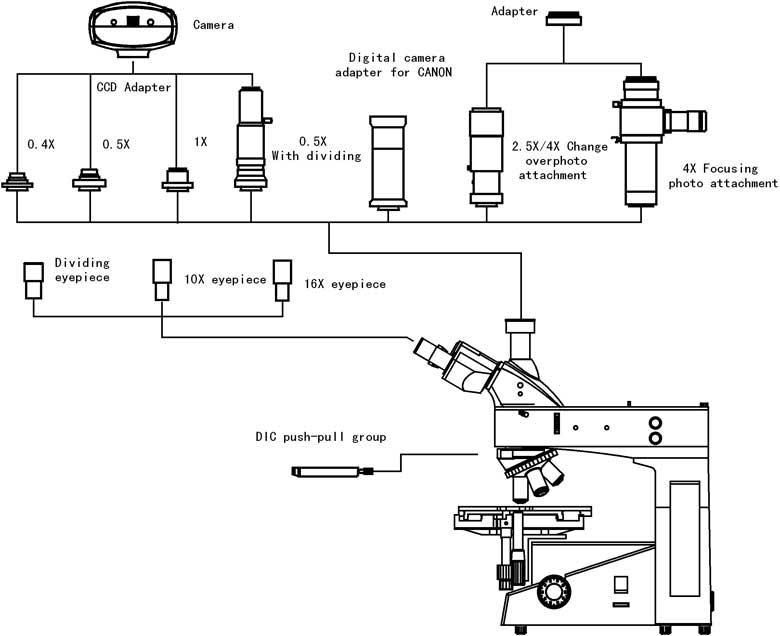

2. Structure

3. Image

Parts	Specifications	XJM800BD
Optical System	Infinite Plan Optical System F=200mm	●
Viewing head	Siedentopf trinocular head, interpupillary distance 53~75mm, 30° inclined, diopter adjustable, can 100% split light.	●
Eyepiece	WF10X/22	●●
Eyepiece	WF10X/20mm with reticule	○
Nosepiece	Quintuple, Inward facing.	●
DIC System	10X DIC Push-Pull Group
DIC System	20X DIC Push-Pull Group
Objectives	Long working distance Plan Achromatic 5X/0.10 WD=26.12mm
	Long working distance Plan Achromatic 10X/0.10 WD=20.20mm
	Long working distance Plan Achromatic 20X/0.25 WD=8.80mm
	Long working distance Plan Achromatic 40X/0.10 WD=3.68mm
	Long working distance Plan Achromatic 50X/0.40 WD=3.68mm
	Long working distance Plan Achromatic 60X/0.10 WD=3.18mm
	Long working distance Plan Achromatic 80X/0.10 WD=1.28mm
	Long working distance Plan Achromatic 100X/1.25(Dry) WD=0.40mm
	Plan APO 250X/0.70 WD=2.00mm
	Plan APO 500X/0.75 WD=1.96mm
	Long working distance Plan Achromatic BD5X/0.60 WD=9.70mm	●
	Long working distance Plan Achromatic BD10X/0.60 WD=9.30mm	●
	Long working distance Plan Achromatic BD20X/0.60 WD=7.23mm	●
	Long working distance Plan Achromatic BD50X/0.60 WD=2.50mm	●
	Long working distance Plan Achromatic BD40X/0.60 WD=3.00mm	○
	Long working distance Plan Achromatic BD60X/0.60 WD=1.90mm	○
	Long working distance Plan Achromatic BD80X/0.60 WD=0.80mm	○
	Long working distance Plan Achromatic BD100X/0.75 WD=0.22mm	○
Stage	Double Stage: 280×270mm, moving range:204×204mm(8’X8’ Water)	●
Filter	Blue filter (Φ26)	●
	Green filter (Φ26)	●
	Yellow filter (Φ26)	●
	Ground glass (Φ26)	●
Illumination	6V 30W halogen lamp
Illumination	12V 50W halogen lamp	●
Attaches	Simply Polarizer and Analyzer	●
C-Mount	1X	○
C-Mount	0.5X	○
Digital Camera Joint	(Please advice your digital camera model in advance)	○
Optional	Material analysis soft	○
Weight/Volumn	19KGS, 5949.552CM
