1. Introduction
As one of our base-model inverted metallurgical microscopes, but the XJM500 series is made with the same precision and quality standards as our more advanced microscopes. Employs all new and improved finity plan optical system and with its small footprint and costefficiency, XJM500 series is the best choice for researching of university, factory , institutions and so on. CCD or digital camera can be attached for image capture and professional but user-friendly metallurgical analysis softeare
is also available for option.

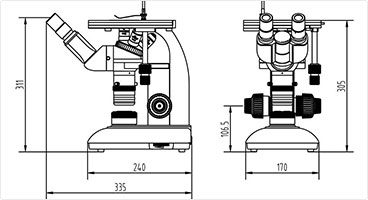

2. Structure
Specification | XJM500M | XJM500B | |
Optical System | Finity Optical System | ● | ● |
Eyepiece | WF10X/18mm | ● | ●● |
WF12.5X/14m | ○ | ○ | |
WF16X/13mm | ○ | ○ | |
WF5X/20mm | ○ | ○ | |
WF10X/18mm (Reticule, 0.1mm) | ○ | ○ | |
Viewing Head | Siedentopf monocular, inclined at 45° | ● | |
Siedentopf binocular, inclined at 45° | ● | ||
Objectives | Plan Achromatic 2.5X/0.07 | ○ | ○ |
Plan Achromatic 4X/0.10 | ○ | ○ | |
Plan Achromatic 10X/0.25 | ● | ● | |
Plan Achromatic 20X/0.35 (S) | ○ | ○ | |
Plan Achromatic 40X/0.65 (S) | ● | ● | |
Plan Achromatic 100X/1.25 (S,O) | ● | ● | |
Stage | Double stage size: 180×180mm | ● | ● |
Moving Range: 50×40mm | |||
Stage Plate | 1 (Φ10) | ● | ● |
2(Φ20) | ● | ● | |
3 (Φ40) | ○ | ○ | |
Set of Stage Plate | ● | ● | |
Main Body | ● | ● | |
Illumination | 3W-LED Lamp | ● | ● |
6V/20W Halogen Lamp | ○ | ○ | |
Filters | Blue, Green, Grey | ● | ● |
Micrometer | Division 0.01mm | ○ | ○ |
Weight/Volume | Packing Size: 437mm×268mm×522mm Gross Weight: 8 kgs Net Weight: 7 kgs | ||
This model also can be inside digital camera system with 130K and 320K pixels. |
Note: "●"In Table Is Standard outfits,"○" Is Optional Accessories.
