1. Introduction
● New research and new development
● Apply to observation and cultivation for cell tissue
● Wide field eyepiece, view field up to Φ23mm,more comfortable for observation
● Long working distance condenser N.A. 0.30,Working distance:72mm
● Working distance: 195mm (without condenser),available for extra high culture dish
● Large size stage, convenient for research.
● Size:240mm(X)× 210(Y)mm
● Mechanical stage available for 96 holes plate. Moving range:128mm(X)× 80(Y)mm
● Long working distance condenser N.A. 0.30,Working distance:72mm Working distance: 195mm (without condenser),available for extra high culture dish Large size stage, convenient for research. Size:240mm(X)× 210(Y)mm Mechanical stage available for 96 holes plate. Moving range:128mm(X)× 80(Y)mm

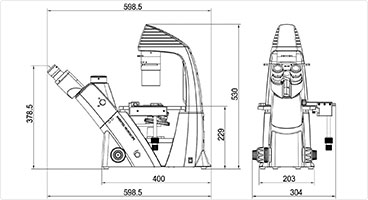

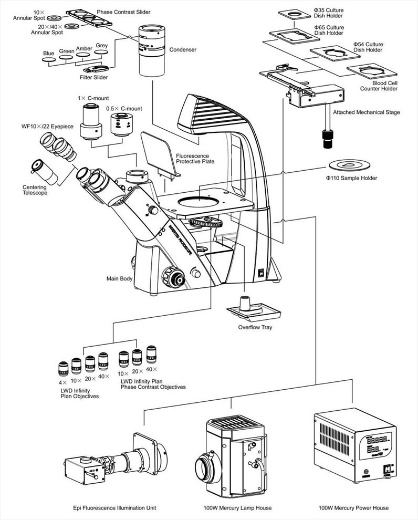

2. Structure
Specification | KXD400 | |
Optical System | Infinity Optical System F=180mm | ● |
Eyepiece | WF10X/22mm | ● |
WF10X/23mm (Reticule) | ○ | |
Viewing Head | Siedentopf trinocular head, interpupillary distance 48~76mm, 45°inclined, diopter adjustable | ● |
Nosepiece | Quintuple, inward facing | ● |
Long Work-distance Objectives | Plan Achromatic 4X/0.11 WD=12.1mm | ○ |
Plan Achromatic 10X/0.25 WD=8.3mm | ● | |
Plan Achromatic 20X/0.40 WD=7.2mm | ● | |
Plan Achromatic 40X/0.60 WD=3.4mm | ● | |
Phase-Contrast Objectives | Plan Achromatic 10X/0.25 WD=8.3mm | ○ |
Plan Achromatic 20X/0.40 WD=7.2mm | ● | |
Plan Achromatic 40X/0.60 WD=3.4mm | ○ | |
C-Mount | 1X | ○ |
0.5X | ○ | |
Condenser | Long working distance, Quickly detachable, N.A.0.3, Working distance: 72mm (with condenser),195mm (without condenser). | ● |
Mechanical Stage | Stage size: X×Y: 210×241mm, Round slide size:Φ110mm, Attached mechanical stage (available for 96 holes plate, moving range X×Y:128×80mm.) | ● |
Koehler Illumination | 6V/30W (input voltage:100V~240V) | ● |
Adaptor for Digital Photograph | Use for CANON/NIKON/OLYMPUS etc. | ○ |
Weight/Volume | Packing Size: 660mm×590mm×325mm Gross Weight: 18 kgs Net Weight: 13.5 kgs |
Note: "●"In Table Is Standard outfits,"○" Is Optional Accessories.
