Fully coated optical system, will give sharp and clear images with extremely good flatness and contrast. With the large zoom rang and long-working distance, it is characterized by brand-new optical design, the best reproduction and true color image.These are ideal for high-magnification, high-resolution observation in biological research, precision-oriented semi-conductor and other industries.

The XTL6745 with 0.67X~4.5X zoom magnification, inclination angles of 45° respectively, the working distance can be up to 105mm when the lens is 1X.

Specification					XTL6745B	XTL6745T
Optical System	Greenough Optical System				●	●
Viewing Head	Binocular 45° inclined, 360° rotatable, (54-75mm), Diopter Adjustment±5				●
Viewing Head	Trinocular 45° inclined, 360° rotatable, (54-75mm), Diopter Adjustment±5					●
C-Mount	1X C-Mount					○
	1/2 C-Mount					○
	1/3 C-Mount					○
Eyepiece	Objective	Magnification Range	Field of View	Working Distance
WF10X/22mm	1x	6.7X-45X	32.8-4.9mm	105mm	●	●
	0.5x	3.4X-22.5X	65.7-9.8mm	177mm	○	○
	1.5x	10.1X-67.5X	21.9-3.3mm	47mm	○	○
	2x	13.4X-90.0X	16.4-2.4mm	26mm	○	○
WF15X/16mm	1x	10.1X-67.5X	23.9-3.6mm	105mm	○	○
	0.5x	5.0X-33.8X	47.8-7.1mm	177mm	○	○
	1.5x	15.1X-101.3X	15.9-2.4mm	47mm	○	○
	2x	20.1X-135X	11.9-1.8mm	26mm	○	○
WF20X/10mm	1x	13.4X-90X	17.9-2.7mm	105mm	○	○
	0.5x	6.7X-45X	38.5-5.3mm	177mm	○	○
	1.5x	20.1X-135X	11.9-1.8mm	47mm	○	○
	2x	26.8X-180X	9.0-1.3mm	26mm	○	○
WF25X/9mm	1x	16.8X-112.5X	13.4-2.0 mm	105mm	○	○
	0.5x	8.4X-56.3X	26.9-4.0mm	177mm	○	○
	1.5x	25.1X-168.8X	9.0-1.3mm	47mm	○	○
	2x	33.5X-225X	6.7-1.0mm	26mm	○	○
WF30X/8mm	1x	20.1X-135X	11.9-1.8mm	105mm	○	○
	0.5x	10.1X-67.5X	23.8-3.6mm	177mm	○	○
	1.5x	30.2X-202.5X	7.9-1.2mm	47mm	○	○
	2x	40.2X-270X	6.0-0.9mm	26mm	○	○

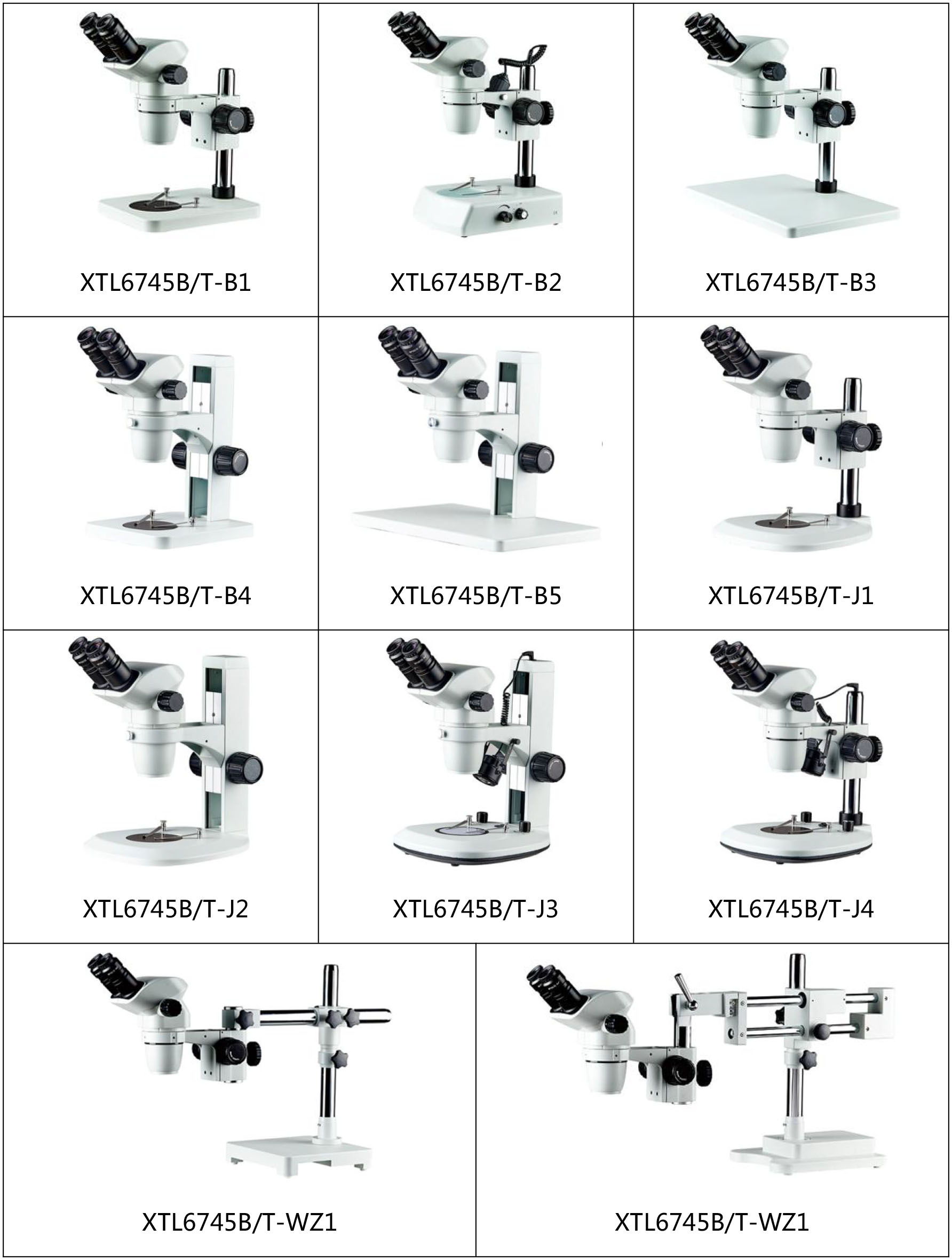

STAND	B1	Post Stand without Illumination			○	○
	B2	Post Stand with 12V15W halogen Illumination			○	○
	B2L	Post Stand with 5V3W LED Illumination			○	○
	B3	Post Stand Without Illumination, Base Size:260X320MM			○	○
	B4	Track Stand without Illumination			○	○
	B5	Track Stand without Illumination, Base Size:260X320MM			○	○
	J1	Post Stand without Illumination			○	○
	J2	Track Stand without Illumination			○	○
	J3	Track Stand with 5V3W LED Illumination			○	○
	J392	Track Stand with 5V3W LED Illumination (Bottom 92 Spots)			○	○
	J4	Post Stand with 5V3W LED Illumination			○	○
	J492	Post Stand with 5V3W LED Illumination (Bottom 92 Spots)			○	○
	WZ1	Boom Stand without Illumination			○	○
	WZ2	Dual Boom Stand without Illumination			○	○
